LXD Serie

LXD Serie

lighting for
working areas

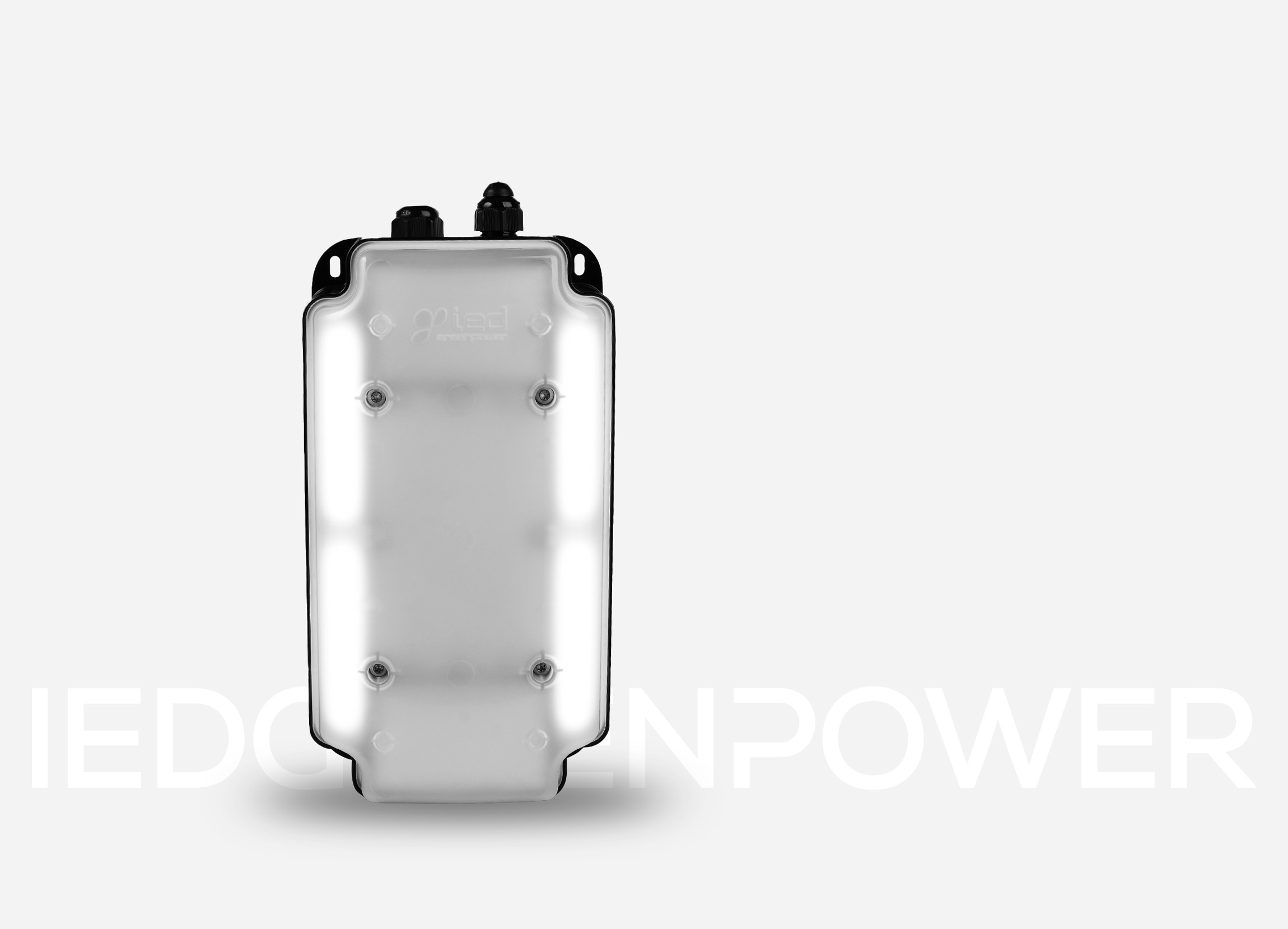

The LXD luminaire, like the LXK and LXF, is a luminaire that allows remote operation from any machine access point (ground in the case of onshore; ground or nacelle-helihost in the case of offshore) or through the machine’s SCADA. Its centralized management can handle alerts, implement inspections or check system status instantly and locally or remotely.

The LXD has a three-dimensional D-shaped photometric profile, ideal for work areas (ground, tower inter-span platforms, nacelle or hub, among others).

Its most common configuration offers a light output of 2700 lumens over the entire thermal range of operation, from -30ºC to 50ºC. It is very compact and easy to install, also in confined spaces, as well as in high places. It optimizes its battery to obtain the required illumination levels in emergency mode and, with a battery life of 13 years and a careful mechanical design (IK07, IP67), it is a highly versatile and efficient luminaire that withstands the most demanding vibration, temperature and corrosion requirements.

See more less

Lighting output

Its light output power is 2700 lm over the entire thermal range (-30ºC to 50ºC).

Photometric profile

Volumetric profile, ideal for work areas or areas with good reflection.

Robustness and low maintenance

IP67, IK07, and a large number of certifications of its performance against vibrations. The battery is the only spare part and has an estimated life of 13 years.

Wind turbine location

In working areas such as ground, platforms, nacelle and hubs.


Access to luminaire status information locally and remotely.

Universal and versatile

It has all certifications (CE, UL, CCC, BIS, etc…) and operates in extended input voltage and frequency ranges (100 Vac-277Vac, 50 Hz.60Hz).

Application areas

Wind generator
